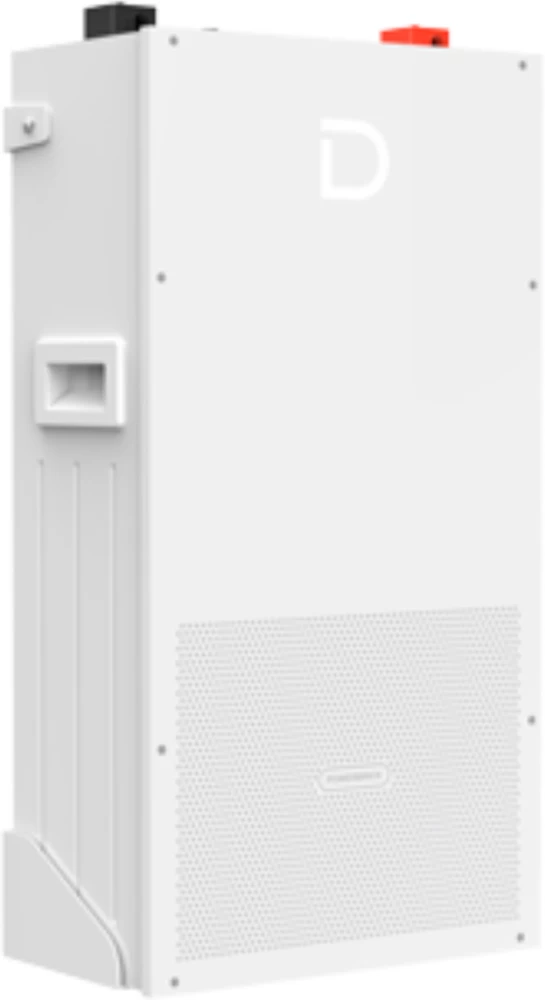

Dyness 14.33 kWh Lithium Battery (LV) Power Brick is a high-capacity energy storage solution designed for residential, commercial, and industrial applications. Built with advanced LiFePO4 technology, it delivers exceptional safety, long cycle life, and high efficiency. With its modular, stackable design, the Dyness Power Brick integrates seamlessly with solar systems and leading inverter brands, offering reliable backup power and maximizing energy independence.
Key Features
-
Large 14.33 kWh storage capacity for extended backup power
-
Safe and durable Lithium Iron Phosphate (LiFePO4) chemistry
-
Modular and stackable design for flexible expansion
-
High cycle life (>6000 cycles @ 80% DOD)
-
Wide compatibility with popular inverter brands
-
Advanced Battery Management System (BMS) for real-time monitoring and safety
-
Compact design with easy wall-mount or floor installation
-
Eco-friendly, maintenance-free operation
Technical Data
| Specification | Value |
|---|---|
| Model | Power Brick LV 14.33 kWh |
| Battery Type | Lithium Iron Phosphate (LiFePO4) |
| Nominal Energy | 14.33 kWh |
| Nominal Voltage | 48 V |
| Operating Voltage Range | 44.8 V – 57.6 V |
| Nominal Capacity | 280 Ah |
| Cycle Life | ≥ 6000 cycles @ 80% DOD |
| Efficiency | ≥ 95% |
| Parallel Connection | Up to 15 units |
| Communication Interface | CAN/RS485 |
| Protection Level | IP20 |
| Installation | Wall-mounted / Floor-standing |
| Dimensions (W x D x H) | 640 x 450 x 220 mm (approx.) |
| Weight | 128 kg (approx.) |
| Operating Temperature | -20°C to 50°C |
| Certification | CE, UN38.3, IEC standards |
