Deye 5.12 kWh BOS-G Pro 100Ah HV Lithium Batteries
The Deye 5.12 kWh BOS-G Pro 100Ah high voltage lithium battery delivers reliable energy storage for commercial and residential solar systems. You get stable performance with lithium iron phosphate chemistry and high voltage design for improved efficiency. The modular structure supports easy expansion. You connect multiple units in series to build a larger battery bank. The battery integrates with Deye high voltage inverters and cluster controllers for smooth system control and monitoring.
Key Features
• 5.12 kWh energy storage capacity per module.
• High voltage design improves system efficiency and reduces current losses.
• 100Ah capacity with lithium iron phosphate chemistry for long life.
• Supports modular expansion for larger storage systems.
• Built in battery management system for safety and performance control.
• High cycle life above 6000 cycles under standard conditions.
• Rack mount design for clean and organized installation.
• Compatible with Deye BOS-G cluster controller and inverters.
• Suitable for commercial, industrial, and large home systems.

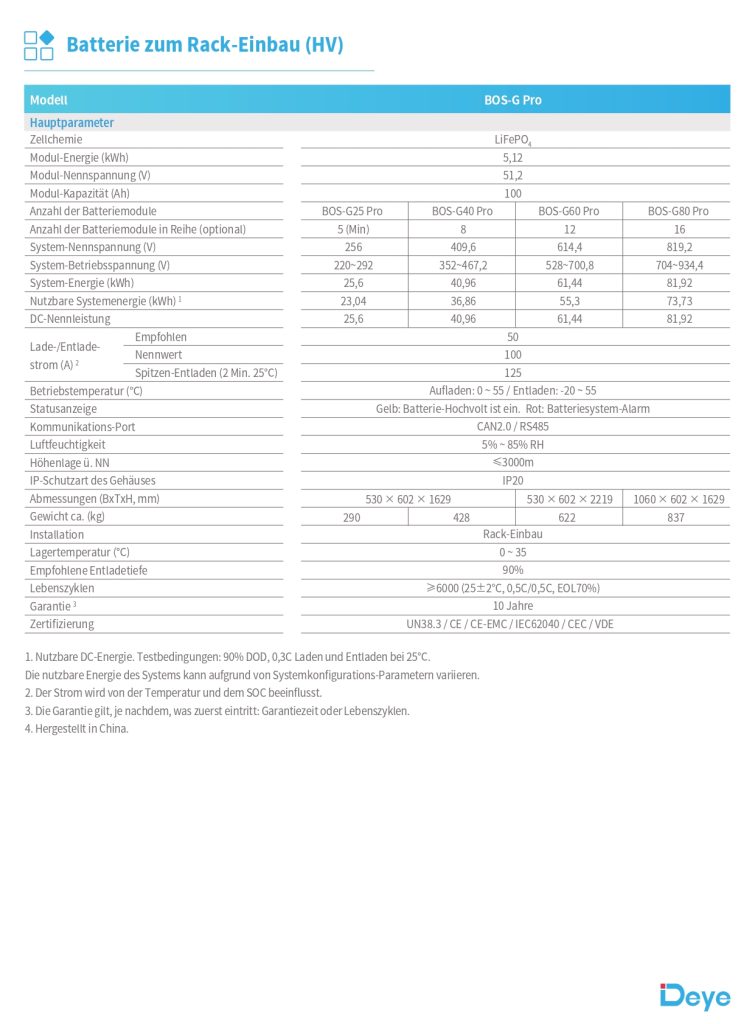

Technical Specifications
| Cell Chemistry | LiFePO₄ |
| Module Energy | 5.12 kWh |
| Module Nominal Voltage | 51.2 V |
| Module Capacity | 100 Ah |
| Battery Module Number Options | BOS – G25 Pro (5), BOS – G40 Pro (8), BOS – G60 Pro (12), BOS – G80 Pro (16) |
| System Energy | 25.6 kWh (G25 Pro), 40.96 kWh (G40 Pro), 61.44 kWh (G60 Pro), 81.92 kWh (G80 Pro) |
| Rated DC Power | 25.6 kW (G25 Pro), 40.96 kW (G40 Pro), 61.44 kW (G60 Pro), 81.92 kW (G80 Pro) |
| Working Temperature | Charge: 0 – 55°C; Discharge: – 20 – 55°C |
| Communication Port | CAN2.0 / RS485 |
| IP Rating | IP20 |
| Cycle Life | ≥6000 cycles (25±2°C, 0.5C/0.5C, EOL70%) |
| Warranty | 10 years |
| Certification | UN38.3 / CE / EMC / IEC62040 / CEC / VDE |
